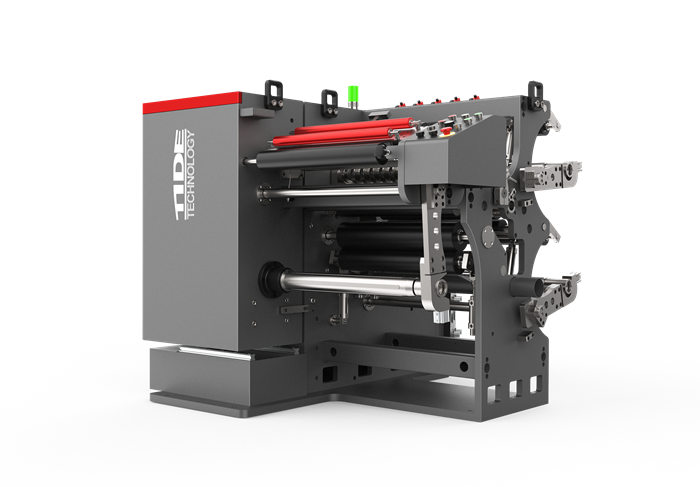

SC150 Digital Control Hi-speed Slitter
CHARACTERISTICS
· Slitting for film, paper, laminated material
· Center rewinding mode
· Unwinding width≤600mm
· Splicing table with nip bars to fix material
· Center rewinding mode
· Unwinding width≤600mm
· Splicing table with nip bars to fix material
· Servo control system
· Self diagnosis
· Maintenance information on touch screen
· Remote diagnosis and service
· Self diagnosis
· Maintenance information on touch screen
· Remote diagnosis and service
TECHNICAL DATA
· Width of working face: 500mm
· Thickness of rewinding: 12-150μm, more than 150μm
· Diameter of unwinding: φ500mm
· Thickness of rewinding: 12-150μm, more than 150μm
· Diameter of unwinding: φ500mm
· Working speed: 300m/min(max)
· Width of rewinding: 50mm(min)
· Diameter of rewinding: φ400mm(max)
· Width of rewinding: 50mm(min)
· Diameter of rewinding: φ400mm(max)
OPTION
* Stop by pictures accounting
* Link to ERP
* Integration of inspection systems
* Link to ERP
* Integration of inspection systems
